DVA Departure
Download - DVA Departure .json Download - DVA Departure (extended example) .json Download - DVA Departure (met comments) .json
Multiple houseconsigments Download - DVA with multiple house consigments .json
This example file shows a specific DVA scenario. This scenario applies to businesses which want to prepare DVA declarations that contain multiple HouseConsignments (deelzendingen), and multiple consignee / consignor addresses, all within the same declaration
API Endpoint & JSON functions

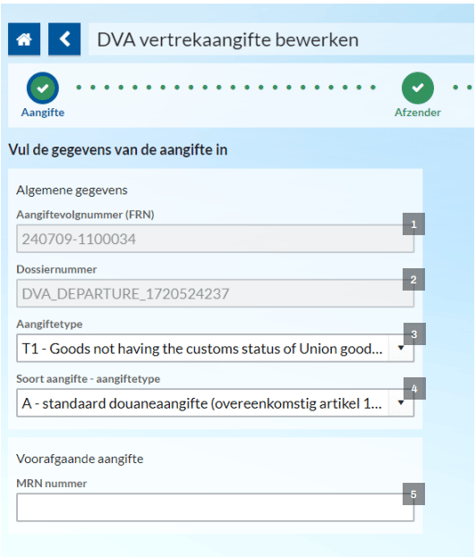

Stap 1: Aangifte
| Nr | Veldnaam in Shipment | TAG | Type | Spec | Opmerking | DWU |
| 1 | Aangiftevolgnummer (FRN) | FunctionalReference Number | {string} | Automatically generated The Functional Reference Number (FRN) of the declaration for which the status was changed | ||
| 2 | Dossiernummer | dossierNumber | {string} | {1-30} | The dossier number | |
| 3 | Aangiftetype | dvaDepartureDeclarations. declarationData. declarationType | {string} | {1-5} | Gets or sets the type of the declaration | CL231 |
| 4 | Soort aangifte - aangiftetype | dvaDepartureDeclarations. declarationData. additionalDeclarationType | {string} | {1-5} | Gets the type of the additional declaration | CL042 |
| 5 | MRN nummer | dvaDepartureDeclarations. exportMrn | {string} | {1-255} | Gets or sets the export MRN |

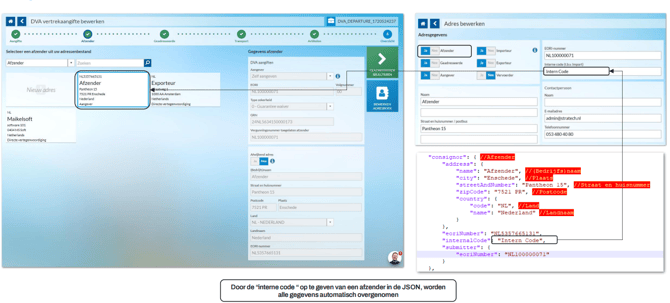

Stap 2: Afzender

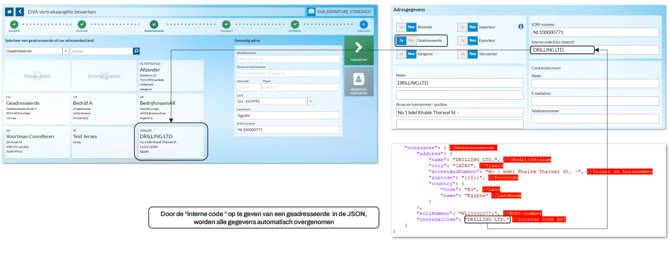

Stap 3: Geadresseerde

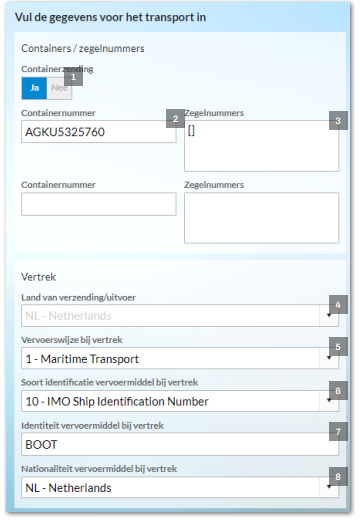

Stap 3: Transport (1/3)
| Nr | Veldnaam in Shipment | TAG | Type | Spec | Opmerking | DWU |
| 1 | Containerzending | dvaDepartureDeclarations. declarationData. isContainerShipment | {boolean} | {true/false} | A value indicating whether this instance is container shipment. | |
| 2 | Containernummer | dvaDepartureDeclarations. declarationData. containers | {Array} | Maxitems 9999 | Gets or sets the containers. | |
| 3 | Zegelnummers | dvaDepartureDeclarations. declarationData. seals | {Array} | Maxitems 9999 | Gets or sets the seals. Allowed to be empty when Containernumber is given | |
| 4 | Land van verzending/uitvoer | dvaDepartureDeclarations. declarationData. departureTransport. countryOfDispatch | {string} | {2} | Gets or sets the country of dispatch | CL008 |
| 5 | Vervoerswijze bij vertrek | dvaDepartureDeclarations. declarationData. borderTransport. transportType | {string} | {1} | Gets or sets the type of the transport | CL218 |
| 6 | Soort identificatie vervoermiddel bij vertrek | dvaDepartureDeclarations. declarationData. borderTransport. typeOfIdentification | {string} | {2} | Gets or sets the type of identificatio | CL750 |
| 7 | Identiteit vervoermiddel bij vertrek | dvaDepartureDeclarations. declarationData. borderTransport. identification | {string} | {35} | Gets or sets the identification. | |
| 8 | Nationaliteit vervoermiddel bij vertrek | dvaDepartureDeclarations. declarationData. borderTransport. nationality | {string} | {2} | Gets or sets the nationality | CL165 |

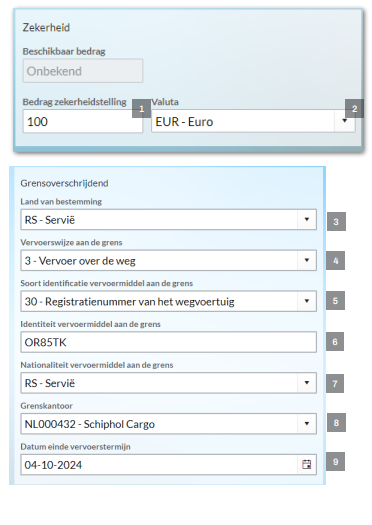

Stap 3: Transport (2/3)
| Nr | Veldnaam in Shipment | TAG | Type | Spec | Opmerking | DWU |
| 1 | Zekerheid Bedrag zekerheidstelling |
dvaDepartureDeclarations. declarationData. amountToBeCovered | {number} | {0-16} | Gets or sets the amount to be covered. | |
| 2 | Zekerheid Valuta | dvaDepartureDeclarations. declarationData. currency | {string} | {3} | Gets or sets the currency | CL048 |
| 3 | Grensoverschrijdend Land van bestemming |
dvaDepartureDeclarations. declarationData. countryOfDestination | {string} | {2} | Gets or sets the country of destination | CL008 |
| 4 | Grensoverschrijdend Vervoerswijze aan de grens | dvaDepartureDeclarations. declarationData. borderTransport. transportType | {string} | {1} | Gets or sets the type of the transport | CL218 |
| 5 | Grensoverschrijdend Soort identificatie vervoermiddel aan de grens | dvaDepartureDeclarations. declarationData. borderTransport. typeOfIdentification | {string} | {2} | Gets or sets the type of identification | CL141 |
| 6 | Grensoverschrijdend Identiteit vervoermiddel aan de grens | dvaDepartureDeclarations. declarationData. borderTransport. Identification | {string} | {35} | Gets or sets the identification | |
| 7 | Grensoverschrijdend Nationaliteit vervoermiddel aan de grens | dvaDepartureDeclarations. declarationData. borderTransport. nationality | {string} | {2} | Gets or sets the nationality | CL165 |
| 8 | Grenskantoor | dvaDepartureDeclarations. declarationData. borderTransport. customsOfficeAtBorderReferenceNumber | {string} | {8} | Gets or sets the customs office at border reference number | CL141 |
| 9 | Grensoverschrijdend Datum einde vervoerstermijn | dvaDepartureDeclarations. declarationData. borderTransport. | {string} | {date-time} | Gets or sets the limit date |

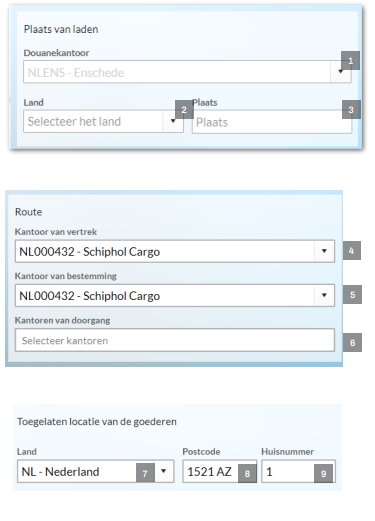

Stap 3: Transport (3/3)
| Nr | Veldnaam in Shipment | TAG | Type | Spec | Opmerking | DWU |
| 1 | Plaats van laden Douanekantoor | dvaDepartureDeclarations. declarationData. placeOfLoading. unLocode | {string} | {17} | Gets or sets the un locoed | CL244 |
| 2 | Plaats van laden Land | dvaDepartureDeclarations. declarationData. placeOfLoading. Country | {string} | {2} | Gets or sets the country | CL008 |
| 3 | Plaats van laden Plaats | dvaDepartureDeclarations. declarationData. placeOfLoading. Location | {string} | {35} | Gets or sets the location | |
| 4 | Route Kantoor van vertrek | dvaDepartureDeclarations. declarationData. customsOfficeOfDepartureReferenceNumber | {string} | {8} | Gets or sets the customs office of departure reference number | CL171 |
| 5 | Route Kantoor van bestemming | dvaDepartureDeclarations. declarationData. customsOfficeOfDestinationReferenceNumber | {string} | {8} | Gets or sets the customs office of destination reference number | CL172 |
| 6 | Route Kantoren van doorgang | dvaDepartureDeclarations. declarationData. customsOfficeOfTransitReferenceNumbers | {array} | maxItems: 9 | Gets or sets the customs office of transit reference numbers | CL173 |
| 7 | Toegelaten locatie goederen Land | dvaDepartureDeclarations goodsLocation Country | {string} | |||
| 8 | Toegelaten locatie goederen Postcode | dvaDepartureDeclarations goodsLocation postCode | {string} | |||
| 9 | Toegelaten locatie goederen Huisnummer | dvaDepartureDeclarations goodsLocation houseNumber | {string} |

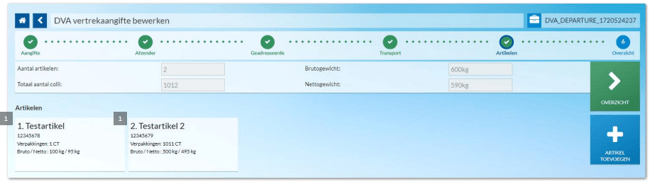

Stap 4: Artikelen (1/2)
| Nr | Veldnaam in Shipment | TAG | Type | Spec | Opmerking | DWU |
| 1 | Artikelnummer (in huidige aangifte) | dvaDepartureDeclarations. declarationData. consignmentItems. goodsItemNumber | {Integer} | {1-999} | ||
| 2 | Artikelnummer (in opgevolgde voeraangifte) | dvaDepartureDeclarations. declarationData. consignmentItems. declarationGoodsItemNumber | {Integer} | {1-999} | ConsignmentItem. declarationGoodsItemNumber en ConsignmentItem. goodsItemNumber zijn doorgaans voor DVA Vertrek gelijk. Wanneer je een aangifte opmaakt welke artikelen bevat uit meerdere invoer of uitvoeraangiften, dan kan het zijn dat je hiermee aan moet geven, welk artikelnummer er aan een bepaalde MRN gekoppeld is. |

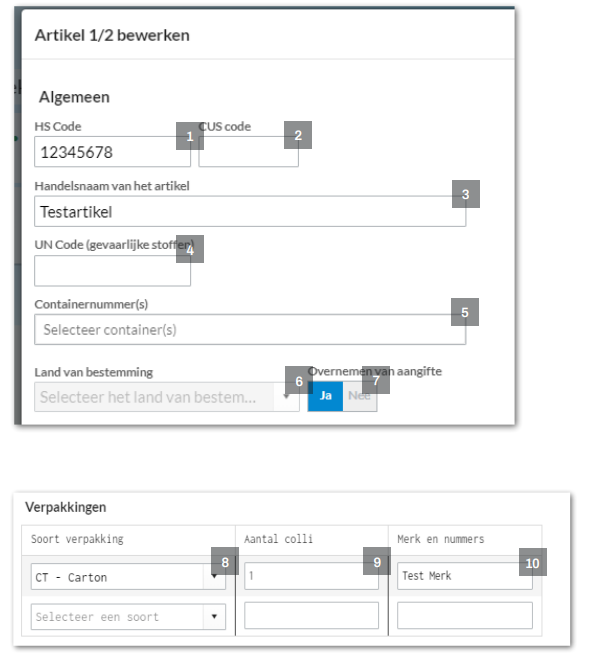

Stap 4: Artikelen (2/4)
| Nr | Veldnaam in Shipment | TAG | Type | Spec | Opmerking | DWU |
| 1 | Algemeen HS Code | dvaDepartureDeclarations. declarationData. consignmentItems. hsCode | {string} | {6-8} | Gets or sets the hs code. | |
| 2 | Algemeen CUS Code | dvaDepartureDeclarations. declarationData. consignmentItems. cusCode | {string} | {9} | Gets or sets the cus code. | |
| 3 | Algemeen Handelsnaam van het artikel | dvaDepartureDeclarations. declarationData. consignmentItems. description | {string} | {1-255} | Gets or sets the description. | |
| 4 | Algemeen UN Code (gevaarlijke stoffen | dvaDepartureDeclarations. declarationData. consignmentItems. unitedNationsCode | {string} | {4} | Gets or sets the united nations code. | |
| 5 | Algemeen Containernummer(s) | dvaDepartureDeclarations. declarationData. consignmentItems. containers | {string} {array} |
{17} Max 9999 items |
Gets or sets the container numbers | |
| 6 | Algemeen Land van bestemming | dvaDepartureDeclarations. declarationData. consignmentItems. countryOfDestination | {string} | {2} | Gets or sets the country of destination | CL008 |
| 7 | Algemeen Overnemen van aangifte | Default “Ja," automatically becomes “Nee" when you specify a different destination country. | ||||
| 8 | Verpakkingen Soort verpakking | dvaDepartureDeclarations. declarationData. consignmentItems. Packaging. typeOfPackages | {string} {array} |
{2} Max items 99 |
Gets the type of packages | CL017 |
| 9 | Verpakkingen Aantal colli | dvaDepartureDeclarations. declarationData. consignmentItems. numberOfPackages | {integer} | {1-8} | Gets the number of packages | |
| 10 |
Verpakkingen Merk en nummers
|
dvaDepartureDeclarations. declarationData. consignmentItems. shippingMarks | {string} | {1-512} | Gets the shipping marks. |

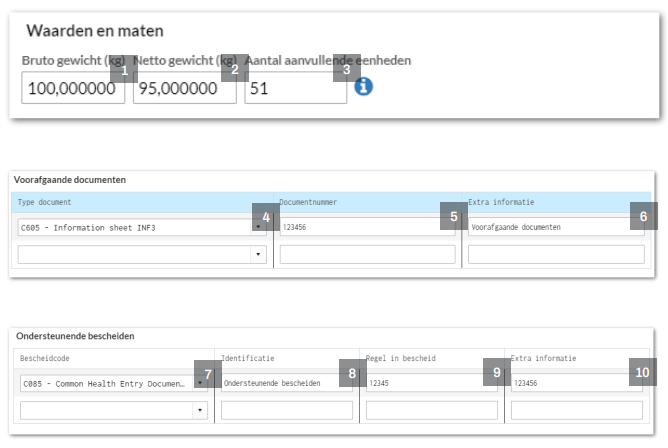

Stap 4: Artikelen (3/4)
| Nr | Veldnaam in Shipment | TAG | Type | Spec | Opmerking | DWU |
| 1 | Waarden en maten Bruto gewicht (kg | dvaDepartureDeclarations. declarationData. consignmentItems. grossWeight | {integer} | {0-16} | Gets or sets the gross weight. | |
| 2 | Waarden en maten Netto gewicht (kg) | dvaDepartureDeclarations. declarationData. consignmentItems. netWeigh | {integer} | {0-16} | Gets or sets the net weight | |
| 3 | Waarden en maten Aantal aanvullende eenheden | dvaDepartureDeclarations. declarationData. consignmentItems. supplementaryUnits | {integer} | {0-16} | Gets or sets the supplementary units. | |
| 4 | Voorafgaande documenten Type document | dvaDepartureDeclarations. declarationData. consignmentItems. previousDocuments | {string} {Array} |
{4} Max 999 items |
CL214 | |
| 5 | Voorafgaande documenten Documentnummer | dvaDepartureDeclarations. declarationData. consignmentItems. referenceNumber | {string} | {0-70} | Gets the reference number | |
| 6 | Voorafgaande documenten Extra informatie | dvaDepartureDeclarations. declarationData. consignmentItems. complementOfInformation | {string} | {0-30} | Gets the complement of information. | |
| 7 | Ondersteunende bescheiden Bescheidcode | dvaDepartureDeclarations. declarationData. consignmentItems. supportingDocuments | {string} {Array |
{4} Max 99 items |
Gets the type | CL213 |
| 8 | Ondersteunende bescheiden Identificatie | dvaDepartureDeclarations. declarationData. consignmentItems. supportingDocuments. referenceNumber | {string} | {0-70} | Gets the reference number | |
| 9 | Ondersteunende bescheiden Regel in bescheid | dvaDepartureDeclarations. declarationData. consignmentItems. documentLineItemNumber | {integer} | {0-5} | Gets the document line item number. | |
| 10 |
Ondersteunende bescheiden Extra informatie |
dvaDepartureDeclarations. declarationData. consignmentItems. supportingDocuments. complementOfInformation | {string} | {0-30} | Gets the complement of information |

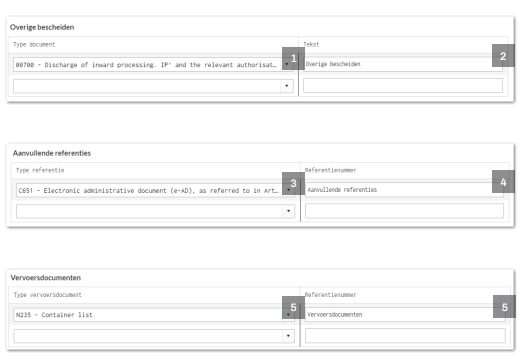

Stap 4: Artikelen (4/4)
| Nr | Veldnaam in Shipment | TAG | Type | Spec | Opmerking | DWU |
| 1 | Overige bescheiden Type document | dvaDepartureDeclarations. declarationData. consignmentItems. additionalInformation. code | {string} {array} |
{5} Maxitems 99 |
Gets the code | CL239 |
| 2 | Overige bescheiden Tekst | dvaDepartureDeclarations. declarationData. consignmentItems. additionalInformation. tex | {string} | {0-512} | Gets the text. | |
| 3 | Aanvullende referenties Type referentie |
dvaDepartureDeclarations. declarationData. consignmentItems. additionalReferences. type | {string} {array} |
{4} Maxitems 99 |
CL380 | |
| 4 | Aanvullende referenties Referentienummer | dvaDepartureDeclarations. declarationData. consignmentItems. additionalReferences. referenceNumber | {string} | {0-70} | Gets the text. | |
| 5 | Vervoersdocumenten Type vervoersdocument |
dvaDepartureDeclarations. declarationData. consignmentItems. transportDocuments. type | {string} {array} |
{4} Maxitems 99 |
CL754 | |
| 6 | Vervoersdocumenten Referentienummer | dvaDepartureDeclarations. declarationData. consignmentItems. transportDocuments. referenceNumber | {string} | {0-70} | Gets the text. |
