EMCS Departure


download_icon Download - EMCS Departure Example file (JSON input) .json

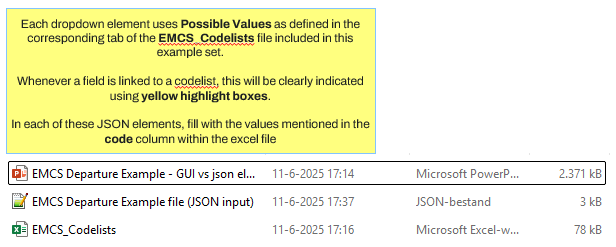

download_icon Download - EMCS Codelist (.xlsx)

 API Endpoint & JSON functions

 Endpoint
 /erpservices/importdossier

JSON Element Spec Description
 applicationReferenceId  "minLength": 1,
"type": "string",		 Your application reference id. Used to communicate about this specific item.
 doNotSaveWhenInvalid  "type": "boolean",
"nullable": true

 A boolean indicating whether not save the item when it is invalid for submission. (default = false, so by default invalid data will be saved).

When “true,” it is especially recommended to be able to process/display feedback from the link in the ERP package, which is t he reason why the data was not saved.
doSubmitWhenValid "type": "boolean",
"description": "A value indicating whether to submit the declaration when it is valid (default = false).",
"nullable": true

 A value indicating whether to submit the declaration when it is valid (default = false)

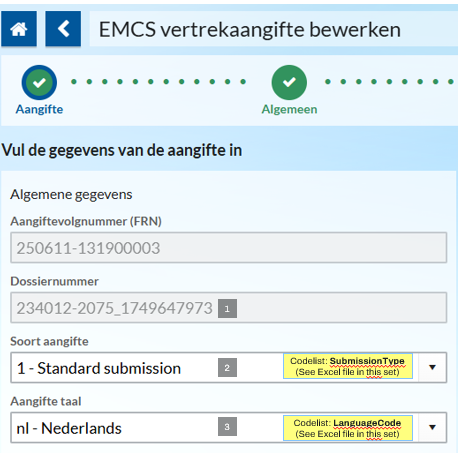

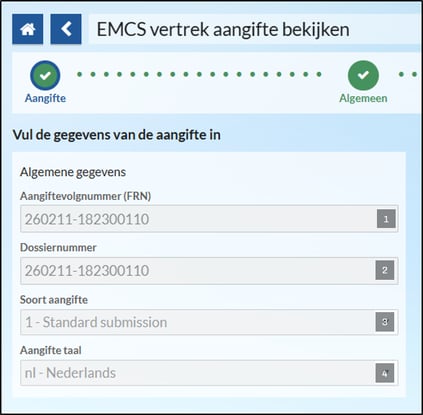

Stap 1: Voorbereiden




Nr. JSON Element Specifiation Comment
1 FRN "frn": {
"type": "string",
"description": "The generated FRN.",
"nullable": true,
"readOnly": true
}
},		 The Functional Reference Number (FRN) of the declaration (Automatically generated)
2 DossierNumber "dossierNumber": {
"maxLength": 30,
"minLength": 1,
"type": "string",
},		 Dossiernaam in Shipment (Order number, Delivery number, transport number, etc).
3 emcsDepartureDeclarations.
DeclarationData.
submissionMessageType		 "submissionMessageType": {
"maxLength": 1,
"minLength": 1,
"type": "string",
},		 Gets the type of the declaration (TC71).
4 emcsDepartureDeclarations.
DeclarationData.
declarationLanguage		 "declarationLanguage": {
"maxLength": 2,
"minLength": 2,
"pattern": "^[a-z]{2}$",
"type": "string",
},		 Gets or sets the declaration language (BC12)."

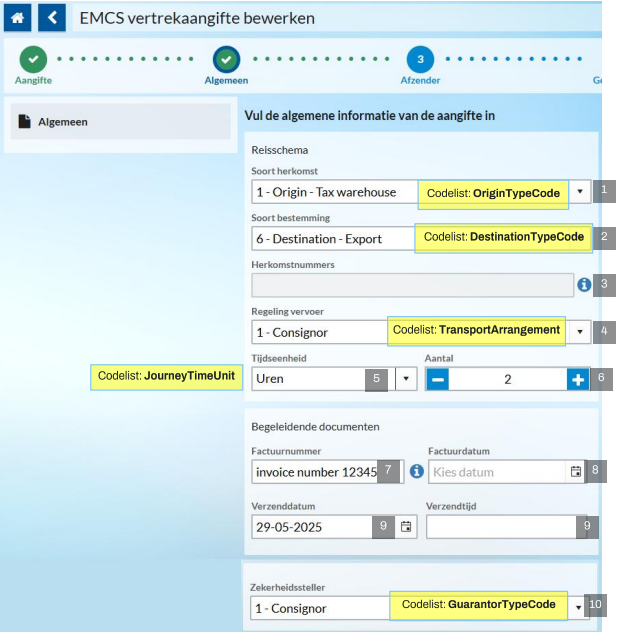

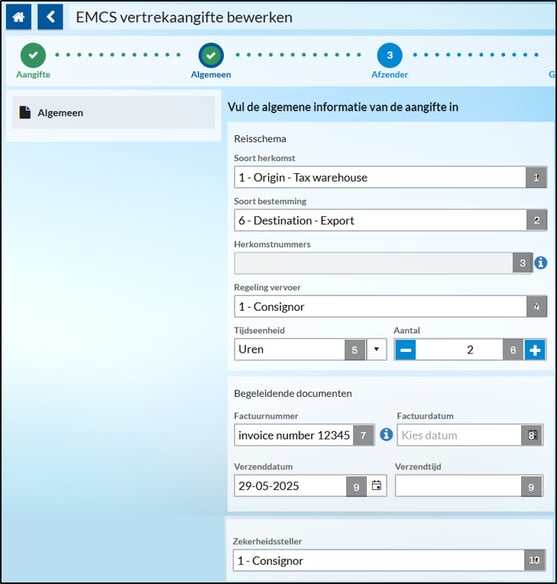

Stap 2: Algemeen



Nr. JSON Element Spefications Comment
1 emcsDepartureDeclarations .
DeclarationData .
originType 		 "originType": {
"maxLength": 1,
"minLength": 1,
"type": "string",
"nullable": true
},		 Gets the type of the origin (TC30).
2 emcsDepartureDeclarations .
DeclarationData .
destinationType 		 "destinationType": {
"maxLength": 2,
"type": "string",
"nullable": true
},		 Gets the type of the destination (TC32).
3 emcsDepartureDeclarations .
DeclarationData .
originNumbers 		 "originNumbers": {
"maxItems": 9,
"type": "array",
"items": {
"type": "string"
},
4 emcsDepartureDeclarations.
DeclarationData .
transportArrangement 		 "transportArrangement": {
"maxLength": 1,
"minLength": 1,
"type": "string",
"nullable": true
},		 Gets the transport arrangement (TC70)
5 emcsDepartureDeclarations .
DeclarationData .
journeyTimeUnit 		 "journeyTimeUnit": {
"maxLength": 1,
"minLength": 1,
"type": "string",
"nullable": true
},		 Gets the journey time unit (H = hours, D = days).
6 emcsDepartureDeclarations .
DeclarationData .
journeyTimeAmount 		 "journeyTimeAmount": {
"maximum": 92,
"minimum": 0,
"type": "integer",
"format": "int32",
"nullable": true
},		 Gets the journey time amount (0-24 when journey time unit is H, 0-92 when D).",
7 emcsDepartureDeclarations .
DeclarationData .
invoiceNumber 		 "invoiceNumber": {
"maxLength": 35,
"type": "string",
"nullable": true
},		 Gets the invoice number.
8 emcsDepartureDeclarations .
DeclarationData .
invoiceDate 		 "invoiceDate": {
"type": "string",
"format": "date-time",
"nullable": true
},		 Gets the invoice date.
9 emcsDepartureDeclarations .
DeclarationData .
dateOfDispatch 		 "dateOfDispatch": {
"type": "string",
"format": "date-time",
"nullable": true
},		 Gets or sets the date of dispatch.
10 emcsDepartureDeclarations .
DeclarationData .
guarantorType 		 "guarantorType": {
"maxLength": 4,
"type": "string",
"nullable": true
},		 Gets the type of the guarantor (TC29).

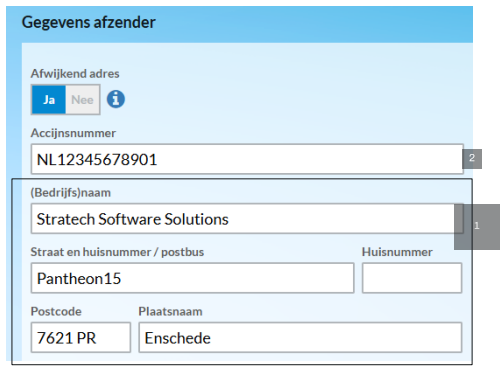

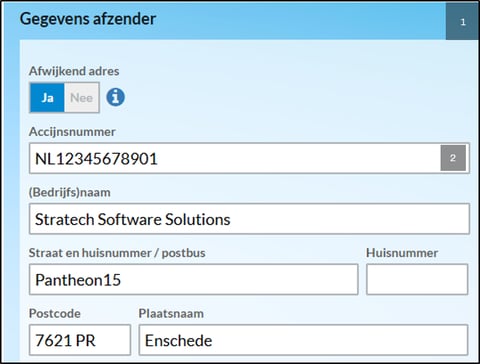

Stap 3: Afzender





Nr. JSON Element Spefications Comment
1 emcsDepartureDeclarations .
consignorTrader.
internalCode		 "internalCode": {
"type": "string",
"nullable": true
},

Gets or sets the Internal code, set in addressbook consignor
2  emcsDepartureDeclarations .
consignorTrader.
exciseNumber		 "exciseNumber": {
"pattern": "^[A-Z]{2}[a-zA-Z0-9]{11}$",
"type": "string",
"nullable": true
},		 Gets the excise number.

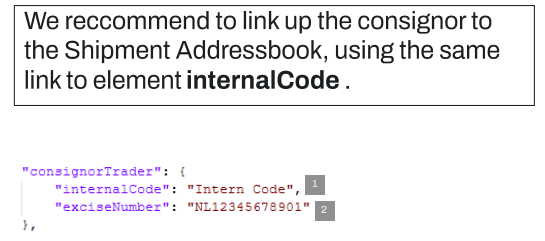

We reccommend to link up the consignor to the Shipment Addressbook, using the same link to element internalCode :


        "consignorTrader": {
          "internalCode": "STRATECH_API",
          "exciseNumber": "NL01000000000"
        },

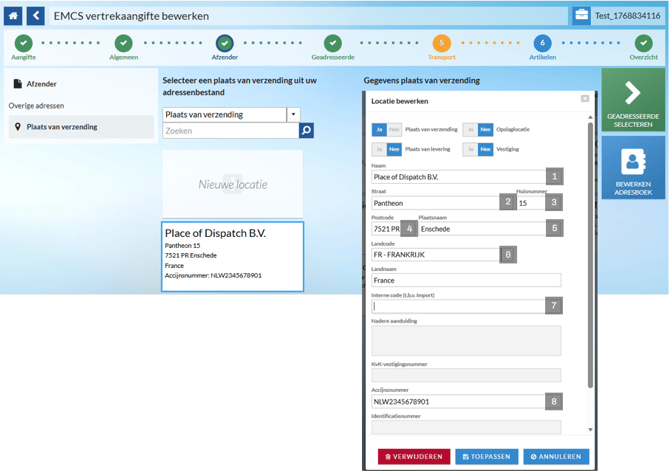

Stap 3: Afzender, Plaats van verzending

EMCS-afbeelding-6

Nr JSON Element Spefications Description
1 emcsDepartureDeclarations.
PlaceOfDispatchTrader .
traderName 		 "traderName": {
"maxLength": 182,
"type": "string",
"description": "Gets the name of the trader.",
"nullable": true
},		 Gets the name of the trader.
2 emcsDepartureDeclarations .
PlaceOfDispatchTrader .
streetName 		 "streetName": {
"maxLength": 65,
"type": "string",
"nullable": true
},		 Gets the name of the street.
3 emcsDepartureDeclarations .
PlaceOfDispatchTrader .
streetNumber

"streetNumber": {
"maxLength": 11,
"type": "string",
"nullable": true
},

  Gets the street number."
4 emcsDepartureDeclarations .
PlaceOfDispatchTrader .
postcode 		 "postcode": {
"maxLength": 10,
"type": "string",
"nullable": true
},		 Gets the postcode.
5 emcsDepartureDeclarations .
PlaceOfDispatchTrader .
city 		 "city": {
"maxLength": 50,
"type": "string",
"description": "Gets the city.",
"nullable": true
},		  Gets the city.
6 emcsDepartureDeclarations .
PlaceOfDispatchTrader .
country.		 "Shared.Country": {
"required": [
"code",
"name"
],
"type": "object",
"properties": {
"code": {
"type": "string",
},
"name": {
"type": "string",
}
},

The code (CL248).








"description": "The name."
7 emcsDepartureDeclarations .
PlaceOfDispatchTrader .
internalCode 		 "internalCode": {
"type": "string",
"nullable": true
},		 Gets or sets the internal code for place of trader.
8 emcsDepartureDeclarations .
PlaceOfDispatchTrader .
referenceOfTaxWarehouse 		 "referenceOfTaxWarehouse": {
"pattern": "^[A-Z]{2}[a-zA-Z0-9]{11}$",
"type": "string",
"nullable": true
}		 Gets the reference of tax warehouse.

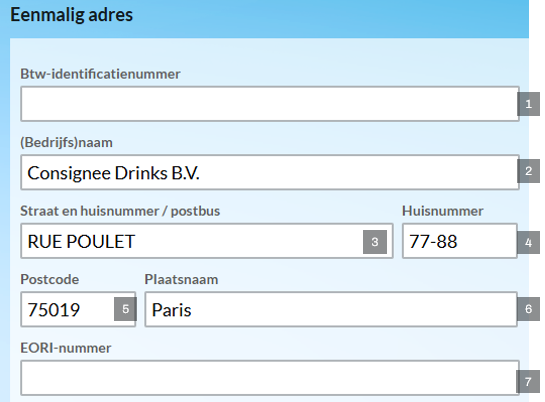

Stap 4: Geadresseerde

EMCS-afbeelding-7

Nr JSON Element Spefications Comment
1

consigneeTrader.
vatNumber

 "vatNumber": {
"maxLength": 16,
"type": "string",
"nullable": true
},		 Gets or sets the vat number.
2

consigneeTrader.
traderName

 "traderName": {
"maxLength": 182,
"type": "string",
"nullable": true
},		 Gets the name of the trader.
3

consigneeTrader.
streetName

 "streetName": {
"maxLength": 65,
"type": "string",
"nullable": true
},		 Gets the name of the street.
4

consigneeTrader.
streetNumber

 "streetNumber": {
"maxLength": 11,
"type": "string",
"nullable": true
},		 Gets the street number.
5

consigneeTrader.
Postcode

 "postcode": {
"maxLength": 10,
"type": "string",
"nullable": true
},		 Gets the postcode.
6

consigneeTrader.
City

  "city": {
"maxLength": 50,
"type": "string",
"nullable": true
},		 Gets the city.
7

consigneeTrader.
eoriNumber

 "eoriNumber": {
"maxLength": 35,
"minLength": 1,
"pattern": "^(((?![Nn][Ll])([A-Za-z]{2})([0-9A-Za-z]{5,15}))|([Nn][Ll]([0-9]{9,10})))$",
"type": "string",
}		 Gets the eori number.

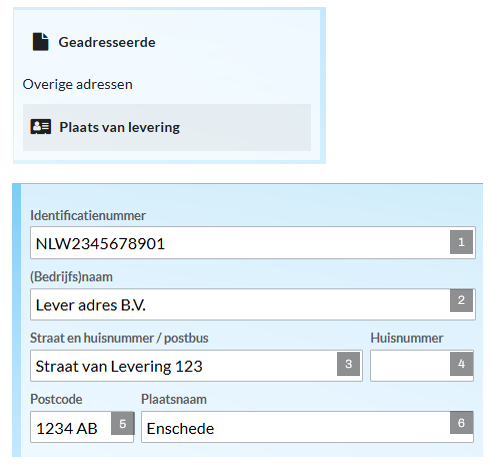

Stap 4: Geadresseerde, Plaats van Levering

EMCS-afbeelding-8

Nr JSON Element


 Spefications Comment
1

consigneeTrader.
identificationNumber

 "identificationNumber": {
"maxLength": 16,
"type": "string",
"nullable": true
}		 Gets the vat number.
2

consigneeTrader.
traderName

 "traderName": {
"maxLength": 182,
"type": "string",
"nullable": true
},		 Gets the name of the trader.
3

consigneeTrader.
streetName

 "streetName": {
"maxLength": 65,
"type": "string",
"nullable": true
},		 Gets the name of the street.
4

consigneeTrader.
streetNumber

  "streetNumber": {
"maxLength": 11,
"type": "string",
"nullable": true
},		 Gets the street number.
5

consigneeTrader.
postcode

  "postcode": {
"maxLength": 10,
"type": "string",
"nullable": true
},		 Gets the postcode.
6

consigneeTrader.
City

  "city": {
"maxLength": 50,
"type": "string",
"nullable": true
},		 Gets the city.

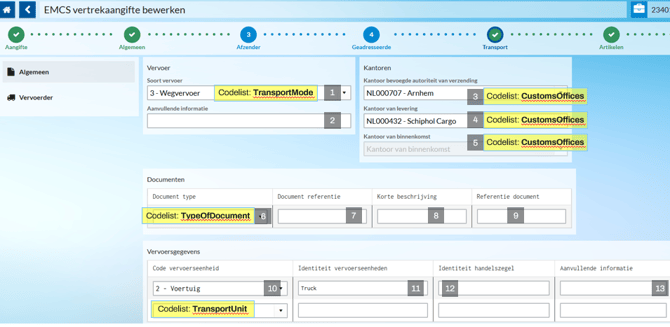

Stap 5: Transport

EMCS-afbeelding-9

Nr JSON Element Spefications Comment
1

declarationData.
transportMode.
transportModeCode

 "transportModeCode": {
"maxLength": 2,
"type": "string",
"nullable": true
},		 Gets the transport mode code (BC67).
2 declarationData.

transportMode.
complementaryInformation

 "complementaryInformation": {
"maxLength": 350,
"type": "string",
"nullable": true
}		 Gets the complementary information.
3

declarationData.
competentAuthorityDispatchOfficeReferenceNumber

 "competentAuthorityDispatchOfficeReferenceNumber": {
"maxLength": 8,
"minLength": 8,
"type": "string",
"nullable": true
},		 Gets the competent authority dispatch office reference number.
4

declarationData.
deliveryPlaceCustomsOfficeReferenceNumber

  "deliveryPlaceCustomsOfficeReferenceNumber": {
"maxLength": 8,
"minLength": 8,
"type": "string",
"nullable": true
},		 Gets the delivery place customs office reference number.
5

declarationData.
dispatchImportOfficeReferenceNumber

  "dispatchImportOfficeReferenceNumber": {
"maxLength": 8,
"minLength": 8,
"type": "string",
"nullable": true
},		 Gets the dispatch import office reference number.
6

DocumentCertificate.
documentType

  "documentType": {
"maxLength": 4,
"type": "string",
"nullable": true
},		 Gets or sets the document type (BC106)
7

DocumentCertificate.
documentReference

  "documentReference": {
"maxLength": 35,
"type": "string",
"nullable": true
},		 Gets or sets the document reference.
8

DocumentCertificate.
documentDescription

 "documentDescription": {
"maxLength": 350,
"type": "string",
"nullable": true
},		 Gets or sets the document description.
9

DocumentCertificate.
referenceOfDocument

 "referenceOfDocument": {
"maxLength": 350,
"type": "string",
"nullable": true
}		 Gets or sets the reference of document.
10

transportDetails.
transportUnitCode

  "transportUnitCode": {
"maxLength": 2,
"type": "string",
"nullable": true		 Gets or sets the transport unit code (BC35).
11

transportDetails.
identityOfTransportUnits

 "identityOfTransportUnits": {
"maxLength": 35,
"type": "string",
"nullable": true
}, 		 Gets or sets the identity of transport units.
12

transportDetails.
commercialSealIdentification

 "commercialSealIdentification": {
"maxLength": 35,
"type": "string",
"nullable": true
},		 Gets or sets the commercial seal identification.
13

transportDetails
complementaryInformation

 "complementaryInformation": {
"maxLength": 350,
"type": "string",
"nullable": true
},		 "Gets or sets the complementary information.

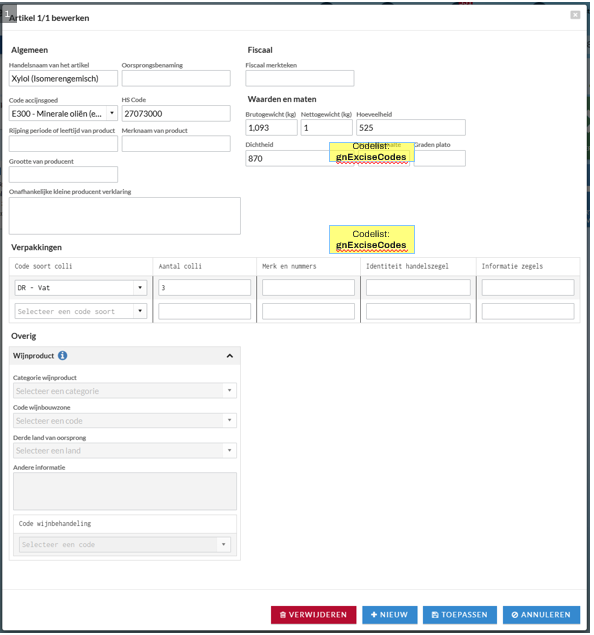

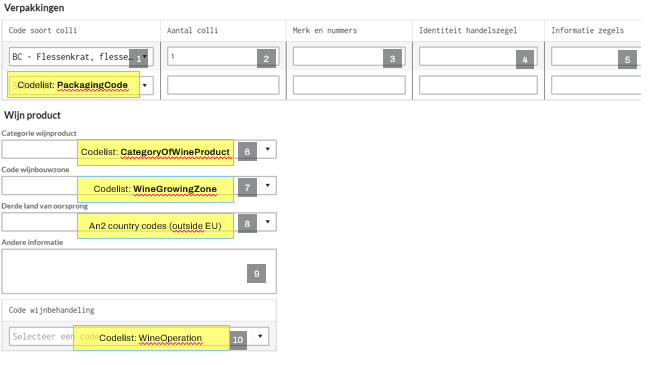

Stap 6: Artikelen (1/2)

EMCS-afbeelding-10

Nr JSON Element Spefications Comment


ExciseProduct.
sequenceNumber

 "sequenceNumber": {
"maximum": 999,
"minimum": 1,
"type": "integer",
"format": "int32"
},		  Gets the sequence number.
1

ExciseProduct.
description

 "description": {
"maxLength": 350,
"type": "string",
"nullable": true
},		 Gets the description.
2



 "designationOfOrigin": {
"maxLength": 350,
"type": "string",
"nullable": true
},		 Gets the designation of origin.
3

ExciseProduct.
fiscalMark

  "fiscalMark": {
"maxLength": 350,
"type": "string",
"nullable": true
},		 Gets the fiscal mark.
4

ExciseProduct.
exciseProductCode

  "exciseProductCode": {
"maxLength": 4,
"minLength": 4,
"type": "string",
"nullable": true
},		 Gets the excise product code (BC36)
5

ExciseProduct.
cnCode

  "cnCode": {
"maxLength": 8,
"minLength": 8,
"type": "string",
"nullable": true
},		 Gets the cn code (BC37 or other value when excise product code is S500).
6

ExciseProduct.
maturationPeriodOrAgeOfProduct

  "maturationPeriodOrAgeOfProducts": {
"maxLength": 350,
"type": "string",
"nullable": true
},		 ets or sets the maturation period or age of products.


Stap 6: Artikelen (2/2)

EMCS-afbeelding-11

Nr JSON Element Spefications Comment
1

Package.
kindOfPackages

 "kindOfPackages": {
"maxLength": 2,
"minLength": 2,
"type": "string",
"nullable": true
},

 Gets the kind of packages (BC17).
 2

Package.
numberOfPackages

"numberOfPackages": {
"maximum": 999999999999999,
"minimum": 0,
"type": "integer",
"format": "int64",
"nullable": true
},

Gets the number of packages.
 3

Package.
shippingMarks

"shippingMarks": {
"maxLength": 999,
"type": "string",
"nullable": true
},

Gets the shipping marks.
 4

Package.
commercialSealIdentification

 "commercialSealIdentification": {
"maxLength": 35,
"type": "string",
"nullable": true
},

 Gets the commercial seal identification.
 5

Package.
sealInformation

 "sealInformation": {
"maxLength": 350,
"type": "string",
"nullable": true
}

 Gets the seal information.
 6

WineProduct.
wineProductCategory

 "wineProductCategory": {
"maxLength": 1,
"type": "string",
"nullable": true
},

 Gets the wine product category (TC38).
 7

WineProduct.
maturationPeriodOrAgeOfProduct

 "maturationPeriodOrAgeOfProducts": {
"maxLength": 350,
"type": "string",
"nullable": true
},

 Gets or sets the maturation period or age of products."
 8

Package.
thirdCountryOfOrigin

 "thirdCountryOfOrigin": {
"maxLength": 2,
"minLength": 2,
"type": "string",
"nullable": true
},

 Gets the third country of origin.
 9

Package.
otherInformation

 "otherInformation": {
"maxLength": 350,
"type": "string",
"nullable": true
},

 Gets the other information.
 10

Package.
wineOperationCode

 "wineOperationCode": {
"maxLength": 2,
"type": "string",
"nullable": true
}

 Gets the wine operation code (BC41).
